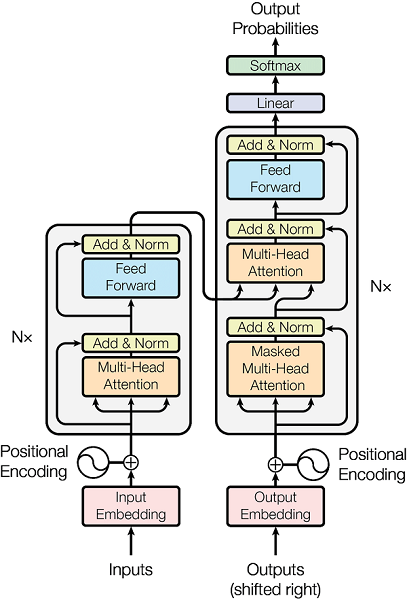

Transformer的结构

Alt text
Transformer的结构如上图所示，我们将其拆解为x个小部分，逐个部分用代码实现，然后再将各个部分联结起来，形成最终的Transformer。

关于Transformer的原理，网上已经有很多优质的文章了，这里我们关心其代码实现。对于其每一个子模块(以类的形式定义)，我们都会实例化一个对象，用具体的数值代入其中，把中间过程中产生的变量维度及相关信息打印出来，这些都体现在代码注释中，请留意。

Muti-Head Attention

Muti-Head Attention接收输入q,k,v，维度在这里都是$[4,3,512]$，输出维度也是$[4,3,512]$。

q和k的维度是一致的，而v可以和它们不一致，这里只是为了方便才将三者维度保持一致。

SelfAttention实现代码如下 (注意注释)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
#自注意力模块
#输入：q,k,v,mask.
#输出：out
class SelfAttention(nn.Module):
    def __init__(self, embed_size, heads):
        super(SelfAttention, self).__init__()
        self.embed_size = embed_size#编码后长度
        self.heads = heads#注意力头数
        self.head_dim = embed_size // heads#每个注意力头的维数

        assert (
            self.head_dim * heads == embed_size
        ), "Embedding size needs to be divisible by heads"

        # q,v,k
        self.values = nn.Linear(self.head_dim, self.head_dim, bias=False)
        self.keys = nn.Linear(self.head_dim, self.head_dim, bias=False)
        self.queries = nn.Linear(self.head_dim, self.head_dim, bias=False)
        self.fc_out = nn.Linear(heads * self.head_dim, embed_size)#heads * self.head_dim=embed_size，只是为了表述清晰

    def forward(self, values, keys, query, mask):
        print('query:',query.shape)# torch.Size([4, 3, 512])
        # 训练样本总数
        N = query.shape[0]
        #print('N：',N)# 4
        #print('values before:',values.shape)# torch.Size([4, 3, 512])
        value_len, key_len, query_len = values.shape[1], keys.shape[1], query.shape[1]
        #print('value_len, key_len, query_len:',value_len, key_len, query_len)# 3 3 3

        # 将embedding 切分为 self.heads 个不同的部分（在后两个维度做了reshape）
        values = values.reshape(N, value_len, self.heads, self.head_dim)
        keys = keys.reshape(N, key_len, self.heads, self.head_dim)
        query = query.reshape(N, query_len, self.heads, self.head_dim)

        values = self.values(values)  # (N, value_len, heads, head_dim)
        #print("values after rshape:",values.shape)# torch.Size([4, 3, 2, 256])
        keys = self.keys(keys)  # (N, key_len, heads, head_dim)
        queries = self.queries(query)  # (N, query_len, heads, heads_dim)

        #爱因斯坦求和法，事实上就是在做矩阵乘法
        energy = torch.einsum("nqhd,nkhd->nhqk", [queries, keys])
        # queries shape: (N, query_len, heads, heads_dim),
        # keys shape: (N, key_len, heads, heads_dim)
        # energy: (N, heads, query_len, key_len)
        #print('energy:',energy.shape)# torch.Size([4, 2, 3, 3])

        # Mask padded indices so their weights become 0
        if mask is not None:
            energy = energy.masked_fill(mask == 0, float("-1e20"))

        # Normalize energy values similarly to seq2seq + attention
        # so that they sum to 1. Also divide by scaling factor for
        # better stability
        attention = torch.softmax(energy / (self.embed_size ** (1 / 2)), dim=3)
        # attention shape: (N, heads, query_len, key_len)
        #print("attention:",attention.shape)# torch.Size([4, 2, 3, 3])
        #print('attention *values',torch.einsum("nhql,nlhd->nqhd", [attention, values]).shape)# torch.Size([4, 3, 2, 256])
        out = torch.einsum("nhql,nlhd->nqhd", [attention, values]).reshape(
            N, query_len, self.heads * self.head_dim
        )
        #print('out before:',out.shape)# torch.Size([4, 3, 512])
        # attention shape: (N, heads, query_len, key_len)
        # values shape: (N, value_len, heads, heads_dim)
        # out after matrix multiply: (N, query_len, heads, head_dim), then
        # we reshape and flatten the last two dimensions.

        out = self.fc_out(out)# torch.Size([4, 3, 512])
        # Linear layer doesn't modify the shape, final shape will be
        # (N, query_len, embed_size)

        return out

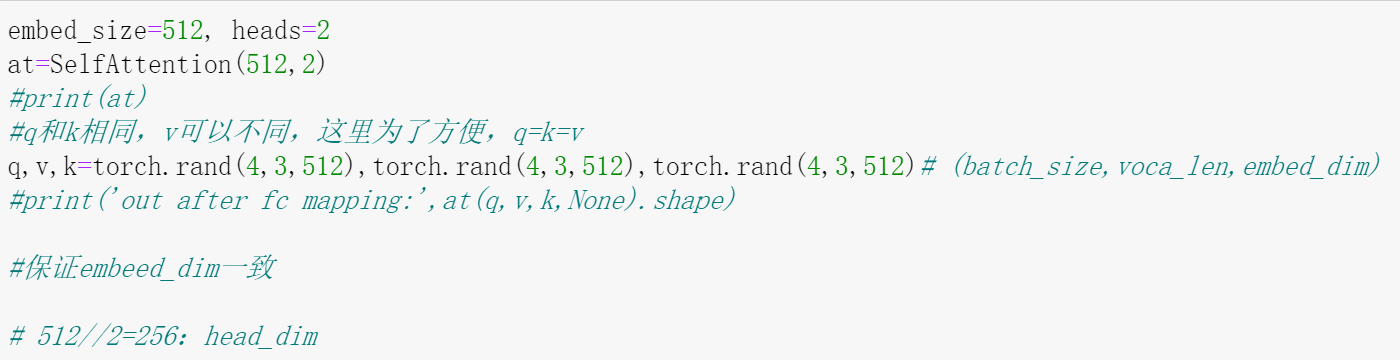

实例化：
Alt text
embed_size：编码后维度
heads：注意力头数

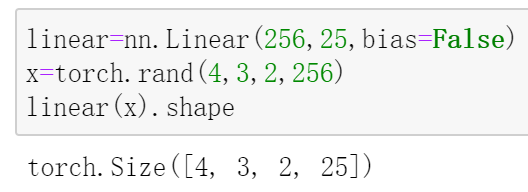

注意在Pytorch中，nn.Linear层的输入可以是多维的，举个例子：
Alt text

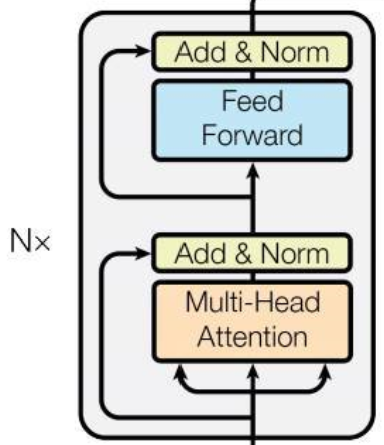

TransformerBlock

也可以称为EncoderBlock。
Alt text

TransformerBlock实现如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
class TransformerBlock(nn.Module):
    def __init__(self, embed_size, heads, dropout, forward_expansion):
        super(TransformerBlock, self).__init__()

        self.attention = SelfAttention(embed_size, heads)
        #print('embed_size, heads:',embed_size, heads)# 512 2
        self.norm1 = nn.LayerNorm(embed_size)
        self.norm2 = nn.LayerNorm(embed_size)

        self.feed_forward = nn.Sequential(
            nn.Linear(embed_size, forward_expansion * embed_size),
            nn.ReLU(),
            nn.Linear(forward_expansion * embed_size, embed_size),
        )

        self.dropout = nn.Dropout(dropout)

    def forward(self, value, key, query, mask):
        #计算注意力分布
        attention = self.attention(value, key, query, mask)#[4, 3, 512]
        #print('attention:',attention.shape)# torch.Size([4, 3, 512])

        # Add skip connection, run through normalization and finally dropout
        x = self.dropout(self.norm1(attention + query))#[4, 3, 512]
        forward = self.feed_forward(x)#[4, 3, 512]
        out = self.dropout(self.norm2(forward + x))#[4, 3, 512]
        return out

若干个TransformerBlock连接在一起组成Encoder。

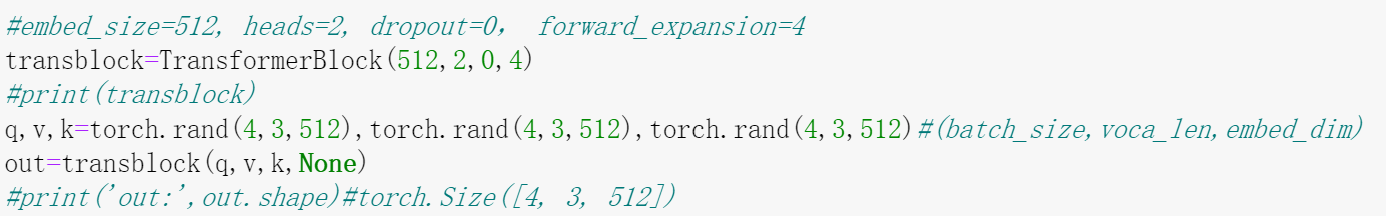

实例化：
Alt text

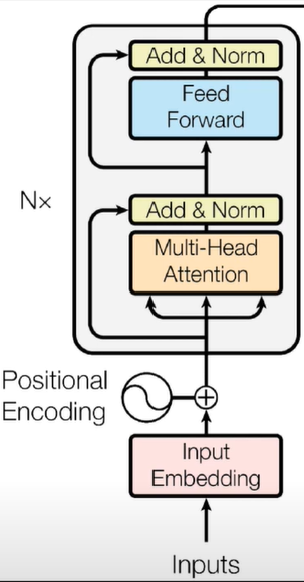

Encoder

Alt text

将位置信息和输入分别编码，再相加，得到的结果送入堆叠的TransformerBlock，就得到了Encoder，具体实现如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
class Encoder(nn.Module):
    def __init__(
        self,
        src_vocab_size,
        embed_size,
        num_layers,
        heads,
        device,
        forward_expansion,
        dropout,
        max_length,
    ):

        super(Encoder, self).__init__()
        self.embed_size = embed_size
        self.device = device
        self.word_embedding = nn.Embedding(src_vocab_size, embed_size)
        self.position_embedding = nn.Embedding(max_length, embed_size)

        self.layers = nn.ModuleList(
            [
                TransformerBlock(
                    embed_size,
                    heads,
                    dropout=dropout,
                    forward_expansion=forward_expansion,
                )
                for _ in range(num_layers)
            ]
        )

        self.dropout = nn.Dropout(dropout)

    def forward(self, x, mask):
        #print('x:',x.shape)# torch.Size([3, 100])
        N, seq_length = x.shape
        positions = torch.arange(0, seq_length).expand(N, seq_length).to(self.device)
        #print('positions:',positions.shape)# torch.Size([3, 100])
        out = self.dropout(
            (self.word_embedding(x) + self.position_embedding(positions))
        )
        #print('out:',out.shape)# torch.Size([3, 100, 512])

        # In the Encoder the query, key, value are all the same, it's in the
        # decoder this will change. This might look a bit odd in this case.
        for layer in self.layers:
            out = layer(out, out, out, mask)
        #print('out after :',out.shape)# torch.Size([3, 100, 512])
        return out

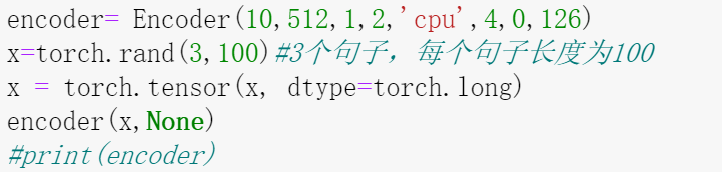

实例化：
Alt text

Decoder

Alt text

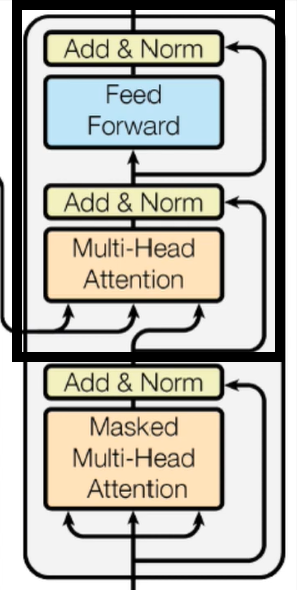

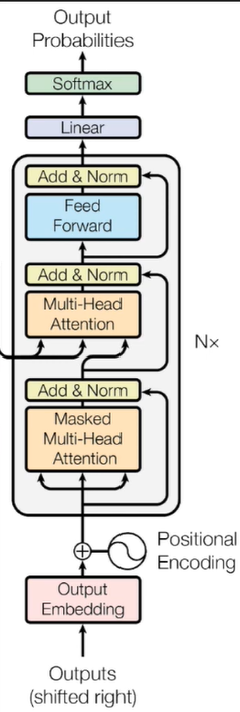

与Encoder类似，Decoder主要组成是多个DecoderBlock的堆叠，DecoderBlock结构如下：
Alt text
其中被框起来的可以看作是一个TransformerBlock，这个在前面已经实现了，所以只需实现下面的那一部分就可以了。

注意从下面右方连接到上面的箭头，它借鉴了残差的思想，做了一个Skip Connection。

DecodrBlock完整实现如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
class DecoderBlock(nn.Module):
    def __init__(self, embed_size, heads, forward_expansion, dropout, device):
        super(DecoderBlock, self).__init__()
        self.norm = nn.LayerNorm(embed_size)
        self.attention = SelfAttention(embed_size, heads=heads)
        self.transformer_block = TransformerBlock(
            embed_size, heads, dropout, forward_expansion
        )
        self.dropout = nn.Dropout(dropout)

    def forward(self, x, value, key, src_mask, trg_mask):
        attention = self.attention(x, x, x, trg_mask)
        #print('DecoderBlock attention:',attention.shape)#torch.Size([2, 7, 512])
        query = self.dropout(self.norm(attention + x))
        #print('DecoderBlock query:',query.shape)#torch.Size([2, 7, 512])
        out = self.transformer_block(value, key, query, src_mask)
        #print('DecoderBlock out:',out.shape)#torch.Size([2, 7, 512])
        return out

有了DecoderBlock，就可以实现Decoder了，它和Encoder的实现代码类似，注意着对比学习：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
class Decoder(nn.Module):
    def __init__(
        self,
        trg_vocab_size,
        embed_size,
        num_layers,
        heads,
        forward_expansion,
        dropout,
        device,
        max_length,
    ):
        super(Decoder, self).__init__()
        self.device = device
        self.word_embedding = nn.Embedding(trg_vocab_size, embed_size)
        self.position_embedding = nn.Embedding(max_length, embed_size)

        #堆叠DecoderBlock
        self.layers = nn.ModuleList(
            [
                DecoderBlock(embed_size, heads, forward_expansion, dropout, device)
                for _ in range(num_layers)
            ]
        )
        self.fc_out = nn.Linear(embed_size, trg_vocab_size)
        self.dropout = nn.Dropout(dropout)

    def forward(self, x, enc_out, src_mask, trg_mask):
        #print('x:',x.shape)# torch.Size([2, 7])
        N, seq_length = x.shape
        positions = torch.arange(0, seq_length).expand(N, seq_length).to(self.device)
        #print('positions',positions.shape)#torch.Size([2, 7])
        x = self.dropout((self.word_embedding(x) + self.position_embedding(positions)))
        #print('x after mappping',x.shape)#torch.Size([2, 7, 512])

        for layer in self.layers:
            #v和k都用enc_out
            x = layer(x, enc_out, enc_out, src_mask, trg_mask)
        #print('x after DecoderBlock:',x.shape)# torch.Size([2, 7, 512])

        out = self.fc_out(x)
        #print('out:',out.shape)# torch.Size([2, 7, 8])

        return out

实例化：
Alt text
输入维度是$[2,7]$，这是未编码的。经过Encoder编码得到的enc_src维度为$[2,7,512]$，再经Decoer解码得到的输出维度为$[2,7,8]$。

Transformer

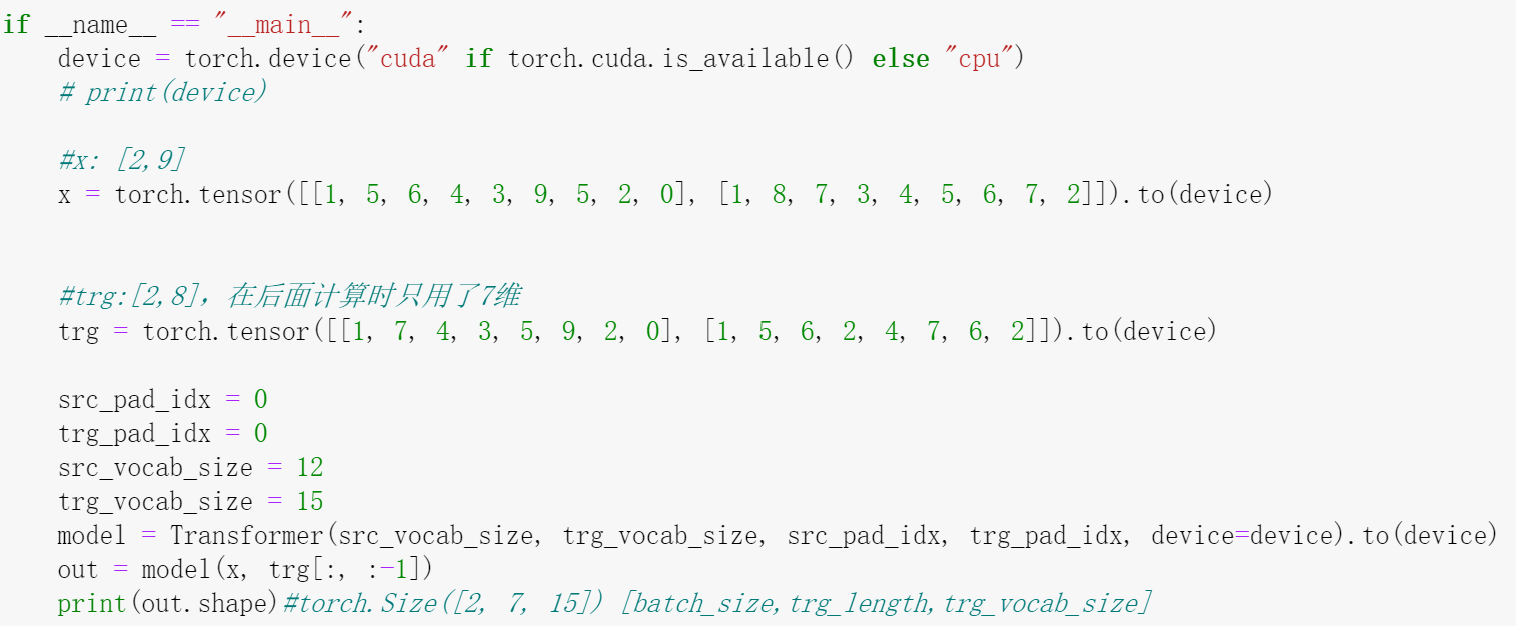

有了以上的组件，就可以将它们组合起来得到Transformer了
Alt text

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
class Transformer(nn.Module):
    def __init__(
        self,
        src_vocab_size,
        trg_vocab_size,
        src_pad_idx,
        trg_pad_idx,
        embed_size=512,
        num_layers=6,
        forward_expansion=4,
        heads=8,
        dropout=0,
        device="cpu",
        max_length=100,
    ):

        super(Transformer, self).__init__()

        #编码器
        self.encoder = Encoder(
            src_vocab_size,
            embed_size,
            num_layers,
            heads,
            device,
            forward_expansion,
            dropout,
            max_length,
        )
        #解码器
        self.decoder = Decoder(
            trg_vocab_size,
            embed_size,
            num_layers,
            heads,
            forward_expansion,
            dropout,
            device,
            max_length,
        )

        self.src_pad_idx = src_pad_idx
        self.trg_pad_idx = trg_pad_idx
        self.device = device

    #原数据的mask
    def make_src_mask(self, src):
        src_mask = (src != self.src_pad_idx).unsqueeze(1).unsqueeze(2)
        # (N, 1, 1, src_len)
        #print('src_mask:',src_mask.shape)#torch.Size([2, 1, 1, 9])
        #print('src_mask:',src_mask)
        """
        src_mask: tensor([[[[ True,  True,  True,  True,  True,  True,  True,  True, False]]],


        [[[ True,  True,  True,  True,  True,  True,  True,  True,  True]]]],
       device='cuda:0')

        """
        return src_mask.to(self.device)

    #目标数据的mask
    def make_trg_mask(self, trg):
        N, trg_len = trg.shape
        #torch.tril返回一个张量，包含输入2D张量的下三角部分，其余部分设为0
        trg_mask = torch.tril(torch.ones((trg_len, trg_len))).expand(
            N, 1, trg_len, trg_len
        )
        #print('trg_mask:',trg_mask.shape)#torch.Size([2, 1, 7, 7])
        #print('trg_mask:',trg_mask)
        """
        trg_mask: tensor([[[[1., 0., 0., 0., 0., 0., 0.],
          [1., 1., 0., 0., 0., 0., 0.],
          [1., 1., 1., 0., 0., 0., 0.],
          [1., 1., 1., 1., 0., 0., 0.],
          [1., 1., 1., 1., 1., 0., 0.],
          [1., 1., 1., 1., 1., 1., 0.],
          [1., 1., 1., 1., 1., 1., 1.]]],


        [[[1., 0., 0., 0., 0., 0., 0.],
          [1., 1., 0., 0., 0., 0., 0.],
          [1., 1., 1., 0., 0., 0., 0.],
          [1., 1., 1., 1., 0., 0., 0.],
          [1., 1., 1., 1., 1., 0., 0.],
          [1., 1., 1., 1., 1., 1., 0.],
          [1., 1., 1., 1., 1., 1., 1.]]]])
        """

        return trg_mask.to(self.device)

    def forward(self, src, trg):
        src_mask = self.make_src_mask(src)
        trg_mask = self.make_trg_mask(trg)
        enc_src = self.encoder(src, src_mask)
        #print('enc_src:',enc_src.shape)# torch.Size([2, 9, 512])
        out = self.decoder(trg, enc_src, src_mask, trg_mask)
        #out = self.decoder(trg, enc_src, None,None)
        return out

实例化：
Alt text
在Decoder的例子中，decoder传入的第一个参数是x，而这里实例化的model对应的Decoder部分传入的第一个参数实际上是trg[:, :-1]，它的维度是$[2,7]$，因此最后的输出维度为$[2,7,15]$。
